Description

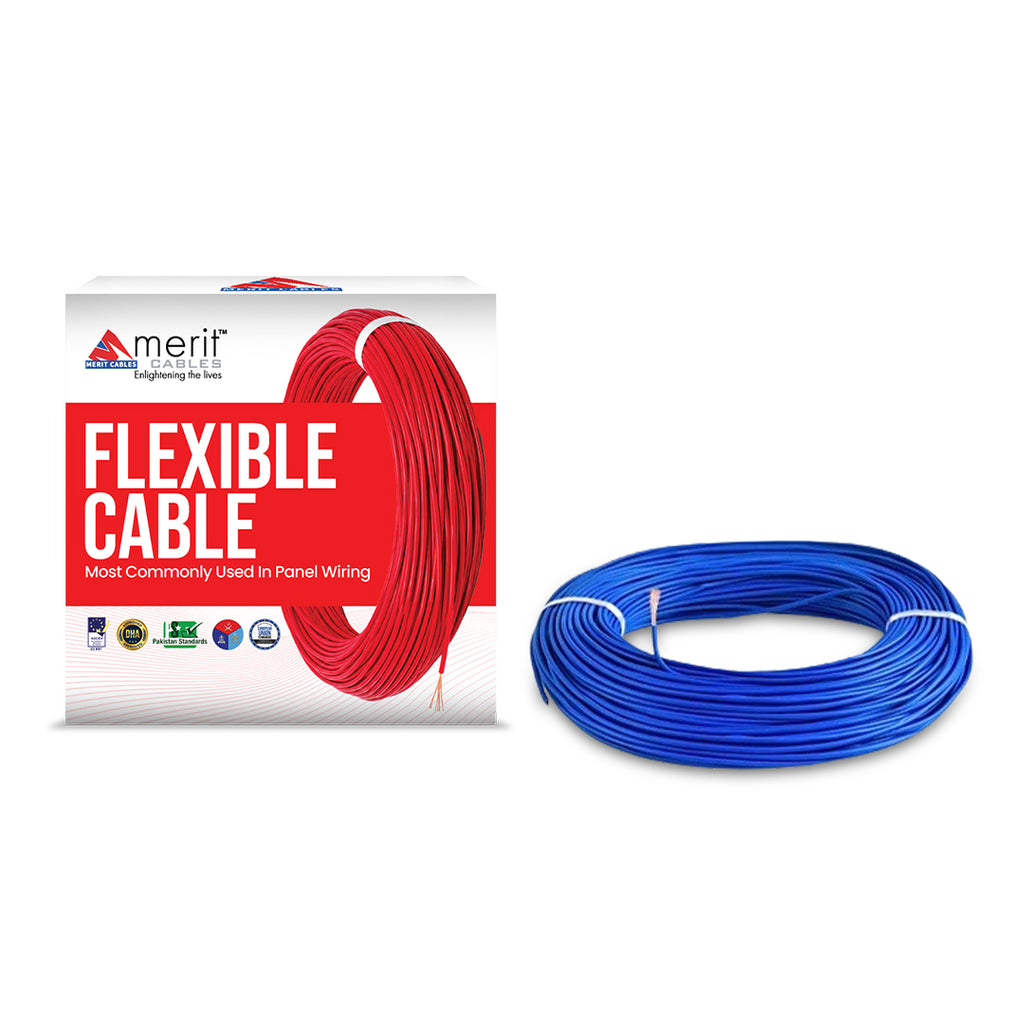

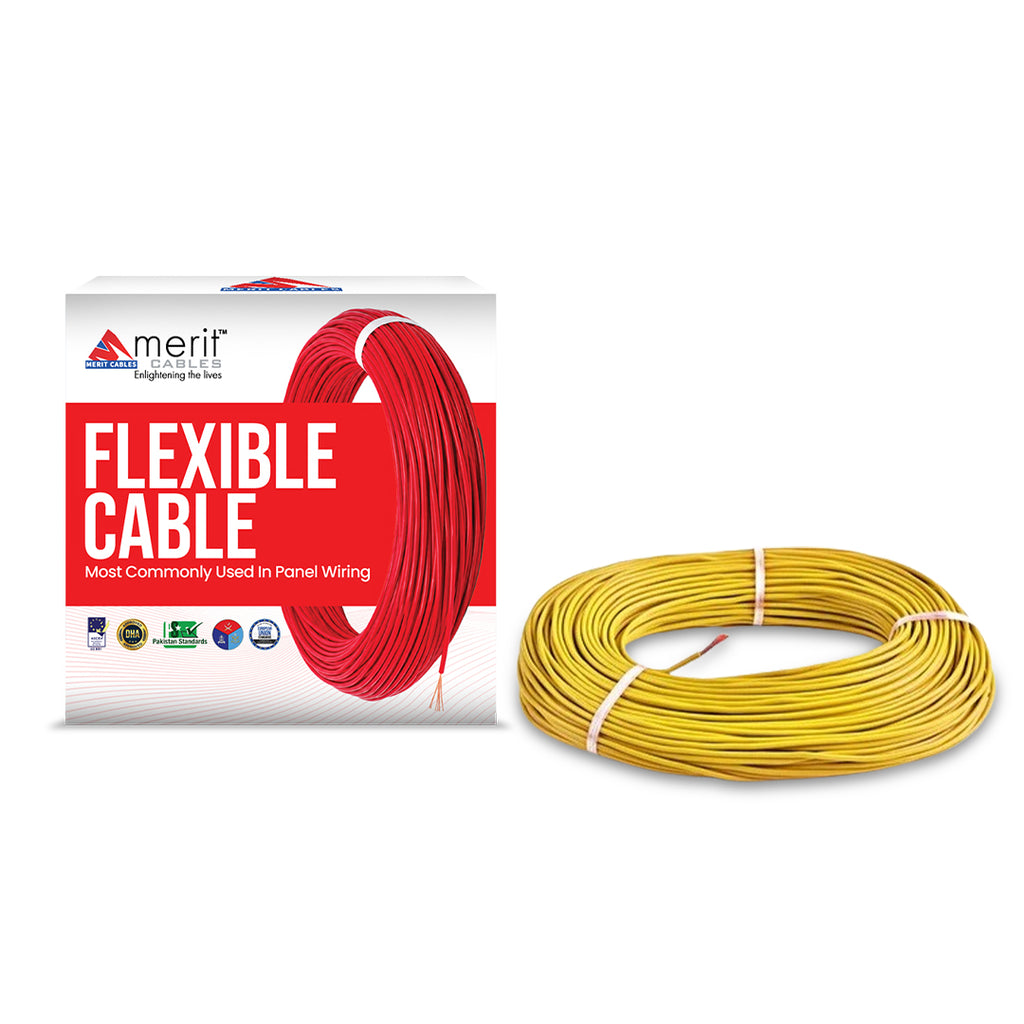

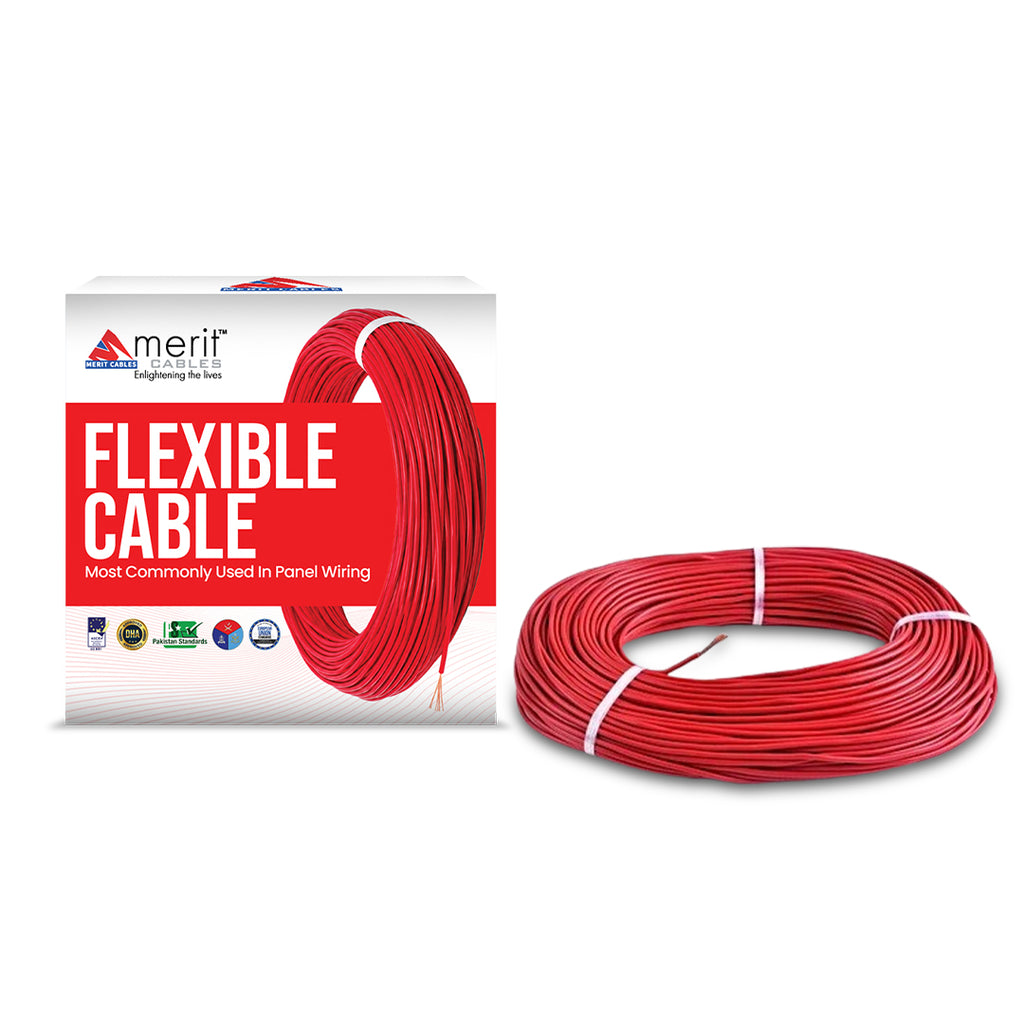

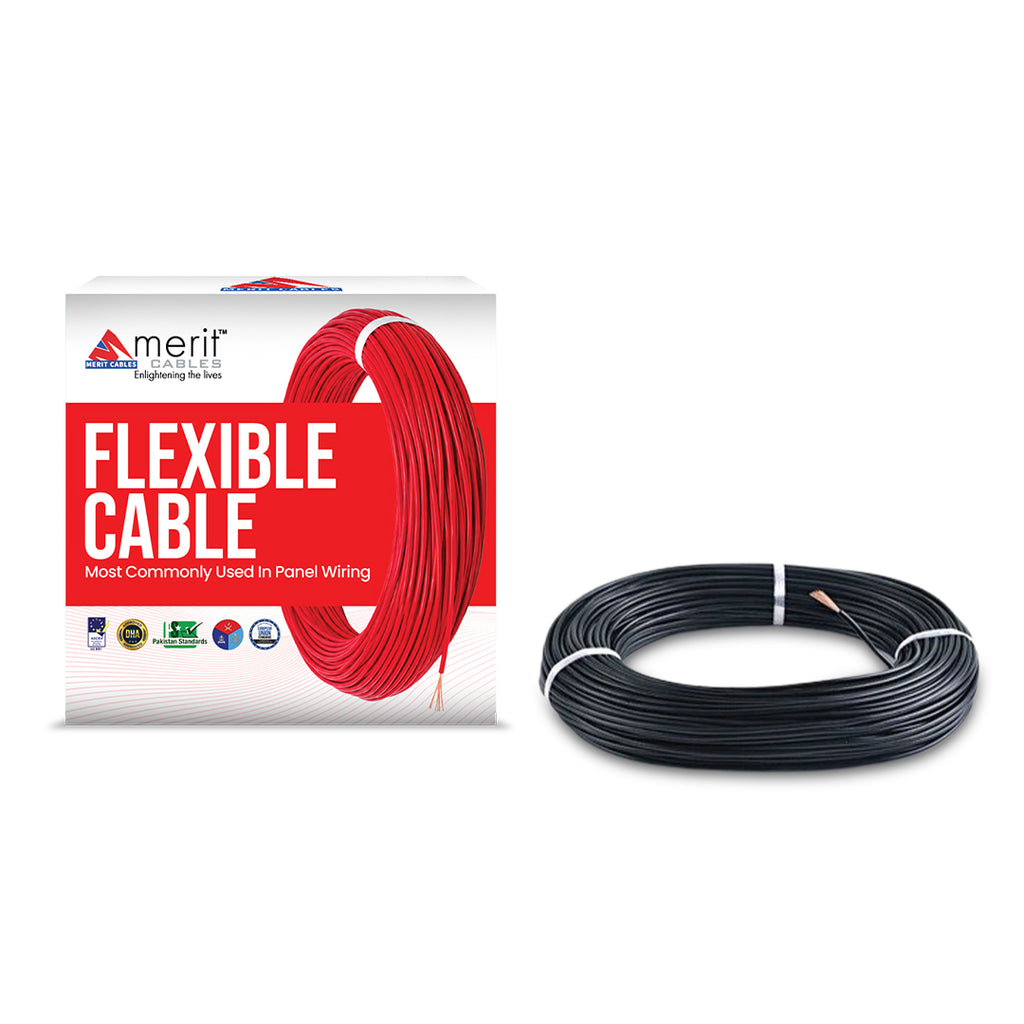

Flexible cables, or 'continuous-flex' cables, are electrical cables specially designed to cope with the tight bending radii and physical stress associated with moving applications, such as inside cable carriers.
Weight | 3.0 kg |
---|---|
Select Color |
RED, BLACK, YELLOW, BLUE |
Length |
90 meters |
No. of Strands |
60 |
Strand Diameter |
.007 Inch |
Conductor Type |
Copper |
Insulation Type |
Poly Vinyl Chloride (PVC) |
Standard |
BSS-6004 Equivalent (60/.0076 )BSS-2004 in Pakistan |
Temperature Rating |
-20C˚ to 70C˚ |
Dc Resistance |
12.1 ohm/km |
Colors Available |
RED, BLACK, YELLOW,BLUE |
Voltage Rating |
250/450V |
Ampere Rating |
16 Amps |
